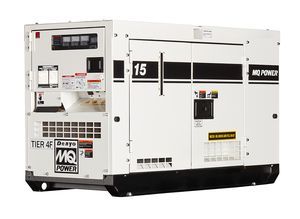

MQ DCA15SPXU4F Power WhisperWatt Super-Silent Single Phase Generator

MQ DCA15SPXU4F Power WhisperWatt Super-Silent Single Phase Generator

Store / Shop by Brand / Multiquip
$21,460.80
In stock
Product Details
Brand: Multiquip
14kW Prime Rating, Single-Phase, Kubota Tier 4 Final
Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.

The DCA15SPXU4F is a 15 kW Single Phase generator with 1.0 power factor and 120/240 volt output. The unit features a steel, sound attenuated, weatherproof and lockable housing. Its easy to maintain design offers quick and direct access to all filters and drain extensions. An electronic governor control maintains steady state 60 Hz within 0.25% from no load to full load. Its comprehensive analog control panel includes several instruments including an ammeter, frequency meter, AC circuit breaker and much more.



Unit Specifications
Prime Rating 14 kW
Standby Rating 14.7 kW
Generator RPM 1800
Voltage - Single Phase 120/240 V
Generator Design Revolving field, Self-Ventilated, Drip-Proof, Single Bearing
Voltage Regulation (No Load to Full Load) ±0.5%
Power Factor 1.0
Armature Connection Series
Excitation Brushles with AVR
No. Poles 4
Frequency 60 Hz
Frequency Regulation (steady state load) ±0.25%
Sound Level (Full Load at 23 ft.) 64 dB(A)
Engine Specifications
Make/Model Kubota / D1503
Emissions Tier 4 Final
Starting System Electric
Design 4-cycle, water cooled, swirl chamber diesel engine
Gross Engine Power Output 24.8 bhp 18.3 kW
Fuel Tank Capacity 16.4 gal 62 L

Please refer to model specific data sheet for detailed specifications.
TRLRMPXF Trailer Specifications
Gross Vehicle Weight Rating (GVWR) 2,000 lb 907 kg
Gross Axle Weight Rating (GAWR) (ea.) 3,500 each lb 1,587 kg
Coupler Rating 3 in. Pintle Eye - 20,000 lb (9,072 kg); 2 in. Ball Coupler - 6,000 lb (2,722 kg); 2-5/16 in. Ball Coupler - 14,000 lb (6,350 kg)
Tire Size ST175/80D13 LR-C
Tire Load Rating (ea.) 1,360 lb 617 kg
Wheel Bolt Pattern 5 Lug on 4.5 in
Fuel Tank Capacity 28 gal 105.99 L
Fits MQ Power Generator Models DA7000SSA2
DCA10SPXU4C
DCA15SPXU4F
TRLRMPXF Dimensions & Weights
Overall Length 98.60 in 2504.4 mm
Overall Width 55.50 in 1409.7 mm
Overall Height 22.00 in 558.8 mm
Operating Weight
With Fuel 713 lb 323 kg
Without Fuel 513 lb 233 kg
