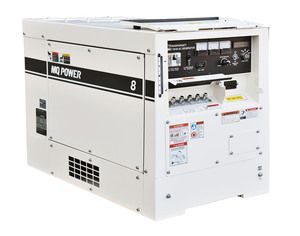

MQ TLG8SSK4F2 Power WhisperWatt Super-Silent Single/Three Phase Generator

MQ TLG8SSK4F2 Power WhisperWatt Super-Silent Single/Three Phase Generator

Store / Shop by Brand / Multiquip
$12,534.60
In stock
Product Details
Brand: Multiquip
6kW Prime Output, Single/Three-Phase, Kubota Tier 4 Final

The TLG8SSK4F2 series generator is designed to handle the toughest applications in the most extreme environments with remarkable results. This model is available with a magnitude of options which assist in making this the perfect choice for any job site requirements.

The TLG8SSK4F2 is a 6kW Three phase generator with a 0.8 power factor, 208/240 volt output and has a 2-pole field. It features a mechanical governor that maintains a steady state 60 Hz within 2.5% from no load to full load. Its comprehensive analog control panel includes instruments such as an amperage, frequency, voltage, and hour meters along with a Main circuit breaker. At 646 lb (263 kg), the TLG8SSK4F2 is the lightest model in the series of three phase WhisperWatt Super-Silent Generators.



Unit Specifications
Prime Rating 6 kW 7.5 kVA
Standby Rating 6.4 kW 8 kVA
Generator RPM 3600
Voltage - Three Phase 208, 220, 240
Voltage - Single Phase 120, 127, 139

Please refer to model specific data sheet for detailed specifications.
Dimensions & Weights
Overall Length 43.3 in 1100 mm
Overall Width 24 in 610 mm
Overall Height 28.3 in 720 mm
Operating Weight 646 lb 293 kg
Engine Specifications
Make/Model Kubota / Z482-E3B
Emissions EPA Tier 4 Final Certified
Starting System Electric
Design Vertical, 4-cycle, liquid cooled, diesel engine
Gross Engine Power Output 12.3 bhp 9.2 kW
Fuel Tank Capacity 6.8 gal 26 L

Please refer to model specific data sheet for detailed specifications.
TRLRMP Trailer Specifications
Gross Vehicle Weight Rating (GVWR) 2760 lb 1252 kg
Gross Axle Weight Rating (GAWR) (ea.) 3500 lb 1587 kg
Coupler Rating
Tire Size ST175/80D13 LR-C
Tire Load Rating (ea.) 1380 lb 616.89 kg
Wheel Bolt Pattern 5 Lug on 4.5
Fits MQ Power Generator Models DA7000SSA2
DCA10SPXU4C
TLG855K4F2
DCA15SPXU4F
TRLRMP Dimensions & Weights
Overall Length 98.6 in 2504.4 mm
Overall Width 55.5 in 1409.7 mm
Overall Height 22 in 558.8 mm
Operating Weight
With Fuel 713 lb 323 kg
Without Fuel 513 lb 233 kg
