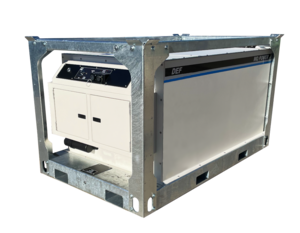

Multiquip DEFTANK302 DEF Replenishment System

Multiquip DEFTANK302 DEF Replenishment System

Store / Shop by Brand / Multiquip
$19,289.90
In stock
Product Details
Brand: Multiquip
300-Gallon Replenishment System

Multiquip, the leader in portable power, introduces the MQ Power DEF Replenishment System, a smart, patent-pending way to manage diesel exhaust fluid (DEF) required by Tier 4 Final diesel engines. This system extends runtime by monitoring the DEF level(s) in diesel powered generator(s) and automatically refills DEF into the generators DEF tank(s), unattended. The 300 gallon tank reduces the number of site visits to maintain and replenish the DEF in unattended applications.

The DEFTANK302 is able to supply and maintain DEF for up to two Tier 4 Final engine equipped products.

  • CANBUS DEF level monitoring – for approved Tier 4 Final engines.
  • Designed to automatically maintain DEF fluid level for up to two engine assemblies simultaneously with no operator involvement.
  • Digital controller provides automated sensing, pumping, purging and shutdown to maintain DEF tank levels.
  • Heavy duty, hot dipped galvanized, skid base.
  • Easy access drain port for serviceability.
  • Internal 300 Gallons (1135 liters) DEF Tank, Poly.
  • Lockable storage compartments on top and front panels secure accessories.
  • Intuitive control panel that provides fluid level and critical operating information.
  • Fault code indicators for ease of troubleshooting and maintenance.
  • Four corner tie downs are provided for ease of transport.
  • Fork pockets integrated on all sides of the skid base.
  • Easy to fill, top mounted tank port, for quick access.
  • Rugged, textured powder coated, housing for longevity in extreme environments.
  • 20-foot DEF Fill Hose(s).
  • Easy access drain port for serviceability.


Unit Specifications
Voltage Requirements 12 VDC V
Amperage Requirements
Per Side 		5.0 x 2 A
Flow Rate
Per Side 		0.75 x2 GPM
Fluid Pressure 5
External Hose Length
Per Side 		25 x 2 ft
Communication Cable
Per Side 		25 x 2 ft
DEF Specifications
Tank Capacity 300 GAL 1135 l
Fluid Type Diesel Exhaust Fluid /Complies with ISO-2224
Dimensions & Weights
Overall Length 85 7/16 in 2170.11 mm
Overall Width 50 1/8 in 1273.18 mm
Overall Height 44 7/16 in 1129.28 mm

Max. Lifting Eye Capacity: 4750 lb (2155 kg)
Operating Weight 4590 lb 2081.99 kg
Shipping Weight 1452 lb 658.62 kg
Show More
