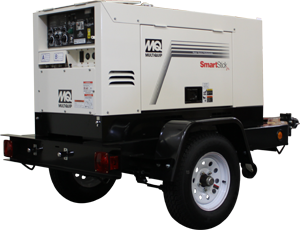

Multiquip DLW400ESA4 Diesel-Powered Welder/Generators

Multiquip DLW400ESA4 Diesel-Powered Welder/Generators

Store / Shop by Brand / Multiquip
$24,906.70
In stock
Product Details
400 amp Welder, 14kW, 120/240V, T4F Kubota

This CC (constant current) and CV (constant voltage) welder delivers up to 400 amps during single operation, or 200 amps to both outputs during dual operation. As a generator, this unit provides up to 14 kW of clean, 120/240 AC power. A digital panel display provides both amperage/voltage and troubleshooting information to the operator(s). Smart Stick, E-Mode, Arc Force are just some of the features of the DLW400ESA4 from Multiquip.

  • Delivers up to 400 amps as a welder with the convenience of 14 kW of AC power as a generator
  • Dual operator output ability
  • Can draw simultaneous AC power while welding
  • Amazing voltage regulation @ 1.5% (+/-)
  • Tier 4 final Kubota diesel - Model D902
  • Arc Force control allows the operator to fine tune DC current during low voltage welding conditions which helps in preventing electrodes froms sticking during short arc length welding
  • Smooth arc characteristics and more consistent, quality weld penetration
  • E-mode improves fuel efficiency by allowing one operator to weld up to 200 amps while the engine maintains idle speeds. Two operators can also use this feature when the total amperage between both outputs does not exceed 200 amps.
  • Smart Stick function automatically shuts the engine down during periods of no load. The operator only needs to tap the welding rod to the grounded work for the engine to restart, making restarts while in the rafters or hanging from the side of a skyscraper a breeze.
  • SMAW, FCAW, GMAW, GTAW and ACAC welding processes
  • Sound attenuated cabinet reduces noise output to 70 dBA @ 23'
  • Full panel GFCI protection - OSHA and NEC compliant
  • Options - Wire remotes, welding cable, cable carriers, tool box, trailers and cold weather items are available for this model.



Unit Specifications
DC Voltage CC: Single 34V, Dual 27V V CV: Single 35V, Dual 28V V
DC Current CC: Single 400, Dual 200 A CV: Single 400, Dual 200 A
Current Range Single 30-400, Dual 30-200 A
Max Duty Cycle
w/ Full Amps Availible		 100% @Single 350, Dual 175 A
Welding Processes SMAW
FCAW
GMAW
GTAW
ACAC
Fuel Tank Capacity 11.1 gal 42 L
Fuel Consumption
at Rated Load		 1.3 gph
Generator Specifications
AC Power Output
(Single Phase)		 14 kW
Cycle 60 Hz
Voltage 120/240 V
Amperage 116/58 A
Voltage Regulation 1.5 %
Receptacles NEMA 5-20R 125V GFCI 20A
NEMA L5-30R 125V Twist-Lock 30A
NEMA L6-30R 250V Twist-Lock 30A
CS-6369 125/250VAC Twist-Lock 50A
**Optional TRLRMPXF has a built in 28 gal. fuel cell
Dimensions & Weights
Overall Length 61 in 1550 mm
Overall Width 29 in 737 mm
Overall Height 35 in 890 mm
Shipping Dimensions 63 x 30 x 41 in
1600 x 762 x 1041 mm
Operating Weight 1144 lb 519 kg
Shipping Weight 1027 lb 466 kg
