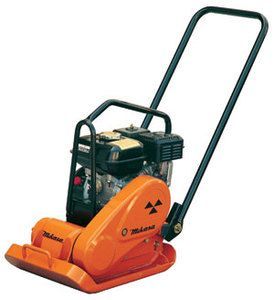

Multiquip MVH128GH Reversible Plate Compactor

Multiquip MVH128GH Reversible Plate Compactor

Store / Compaction Equipment Sales / Vibratory Plate Compactors
$13,430.20
In stock
Product Details
Brand: Multiquip
5,283 lbs cf, Honda GX160, 15.8in. plate

Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

  • Reliable Honda GX160 engine.
  • Fold-out front cover for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Optional- tool-free wheel kit, model WHL158


Unit Specifications
Centrifugal Force 5283 lbf 23.5 kN
Exciter Speed 5400 VPM
Plate Size 23.2x15.8 in
590x400 mm
Max Forward Speed
Per Min.		 89 ft 27 m
Dimensions & Weights
Overall Length 40.55 in 1030 mm
Overall Width 15.75 in 400 mm
Overall Height 38 in 965 mm
Operating Weight 268 lb 122 kg
