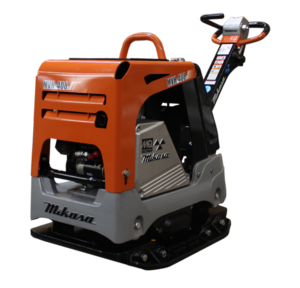

Multiquip MVH408DE Reversible Plate Compactor

Multiquip MVH408DE Reversible Plate Compactor

Store / Compaction Equipment Sales / Vibratory Plate Compactors
$20,923.75
In stock
Product Details
Brand: Multiquip
12,365 lbs cf, Hatz 1B50E Diesel, 20" wide plate

Multiquip’s Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

  • Reliable engine with Hatz diesel offering easy electric start-up.
  • Fold-out front and rear covers for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Extension plates can be added or removed to operating working width up to 6 inches.


Unit Specifications
Centrifugal Force 12365 lbf 55 kN
Exciter Speed 4400 VPM
Plate Size 20 x 35 in
500 x 900 mm
Plate Size
with Extensions		 26 x 35 in
650 x 900 mm
Max Forward Speed
Per Min.		 82 ft 25 m
Water Tank Capacity 25 qt 23.66 L
Dimensions & Weights
Overall Length 62 in 570 mm
Overall Width 26 in 650 mm
Overall Height 48 in 1210 mm
Operating Weight 933 lb 423 kg
