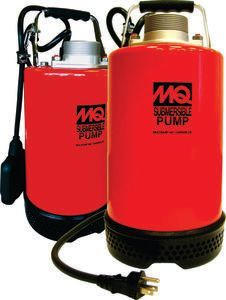

Multiquip ST2037 / ST2037F Electric Submersible Clean-Water Pumps

2 Inch Discharge, 115V 1Ø, 1.0 HP, 73 GPM, 37' Total Head

This lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2037 incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 25’ Power Cable with strain relief. Model ST2037F is available that provides a tethered industrial mechanical float switch assembly.

Unit Specifications

Impeller Type	Neoprene Rubber over Cast-Iron
Impeller Disc Size	2 in	50 mm
Total Head	37 ft	11.3 m
Water Capacity	73 gpm	276 lpm
Max. Solid Intake	0 in	0 mm

Electrical Specifications

Power	1 HP	0.75 kW
Phase	Single
Voltage	115 V
Starting Amperage	25 A
Running Amperage	6.9 A
Cable Length	25 ft	7.5 m

Dimensions & Weights

Pump Diameter	7.4 in	188 mm
Overall Height	15.4 in	391 mm
Operating Weight	31 lb	14 kg
