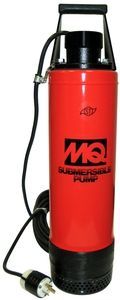

Multiquip ST3020BCUL Electric Submersible Clean-Water Pumps

Multiquip ST3020BCUL Electric Submersible Clean-Water Pumps

Store / Shop by Brand / Multiquip
$1,896.90
In stock
Product Details
Brand: Multiquip
3 Inch Discharge, 230V 1Ø, 2.0 HP, 170 GPM, 72 ft Total Head
This compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. This is a powerful, versatile, low maintenance pump that is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST3020BCUL incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, carrying handle, and molded 50’ Power Cable with strain relief.
  • 2.0HP, 230V/9.8A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 3” (NPT) Male Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Cast iron/steel motor casing serves as heat conductor.
  • Pumps Liquid Up To 120 ° F.
  • 50’ of molded power cord w/strain relief
  • Dewaters Flat Surfaces Up To 1/2” Levels.


Unit Specifications
Impeller Type Cast-Ductile-Iron
Impeller Disc Size 3 in 75 mm
Total Head 72 ft 22 m
Water Capacity 170 gpm 644 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 2 HP 1.5 kW
Phase Single
Voltage 230 V
Starting Amperage 33 A
Running Amperage 10.5 A
Cable Length 50 ft 15.2 m
Dimensions & Weights
Pump Diameter 6.7 in 170 mm
Overall Height 28.5 in 724 mm
Operating Weight 67 lb 30 kg
Show More
Save this product for later
Share this product with your friends
Pin it
Multiquip ST3020BCUL Electric Submersible Clean-Water Pumps
Store / Shop by Brand / Multiquip
You May Also Like

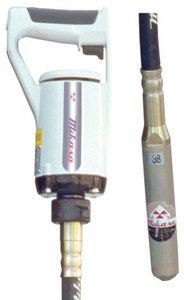

Multiquip FXA50A6 High-Cycle Concrete Vibrators
