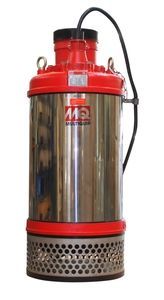

Multiquip ST61230 / ST61460 Electric Submersible Clean-Water Pumps

Multiquip ST61230 / ST61460 Electric Submersible Clean-Water Pumps

Store / Shop by Brand / Multiquip
$6,212.80
Model
In stock
Product Details
Brand: Multiquip
6 Inch Discharge, 230/460 three-phase, 60 Hz 15 HP, 674GPM, 105ft Total Head
This submersible centrifugal pump is a heavy-duty performance minded product for moving water in multiple confined and open area applications. This very powerful, versatile, low maintenance pump is perfect for a wide range of operations supporting Contractors, Service Utilities, and Municipalities. Further, the ST61 Series incorporates a rugged stainless steel housing, oil-filled, double mechanical pump seals, dynamically balanced high chrome impeller, and molded 33’ Power Cable with strain relief. This type of pump requires a Control Box to provide safe operations and safety shutdowns such as thermal & voltage overload protection. Further, the Control Box would permit float switch(if required) connections.
  • 15.0HP, 230/460V, three-phase, 60 Hz.
  • Running AMPS : 43A (230V) / 21.5A (460V).
  • FLOW Capacity: 674 GPM .
  • HEAD: 105’.
  • Pump Diameter: 14.0”
  • Weight: 301 lbs.
  • Passes up to .6” spherical solids.
  • 6” NPT Male Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Output shaft is heat-treated 410 Stainless Steel.
  • Suction Strainer – Stainless Steel (304).
  • Pumps Liquid Up To 140° F – pH 4-10.
  • 33’ of molded power cord w/strain relief.
  • Optional Control Box Model: CB126974 for 230V
  • Optional Control Box Model: CB145663 for 460V


Unit Specifications
Impeller Type High Chrome Steel
Impeller Disc Size 6 in 150 mm
Total Head 105 ft 32 m
Water Capacity 674 gpm 2494 lpm
Max. Solid Intake .6 in 15 mm
Electrical Specifications
Power 15 HP 11 kW
Phase Three
Voltage 230/460 V
Starting Amperage 230V/130 A / 460V/68 A
Running Amperage 230V/43A / 460V/21.5 A
Cable Length 33 ft 10 m
Dimensions & Weights
Pump Diameter 14 in 356 mm
Overall Height 34 in 864 mm
Operating Weight 301 lb 135 kg
Show More
Save this product for later
Share this product with your friends
Pin it
Multiquip ST61230 / ST61460 Electric Submersible Clean-Water Pumps
Store / Shop by Brand / Multiquip
You May Also Like
Husqvarna HI10 Diamond Blade
Husqvarna HI10 Diamond Blade
Husqvarna HI10 Diamond Blade
$224.00
Husqvarna T 18000 Industrial Dust Collector
Husqvarna T 18000 Industrial Dust Collector
Husqvarna T 18000 Industrial Dust Collector
$17,690.90

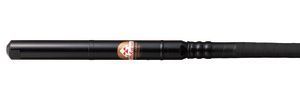

Multiquip FXA50A4 High-Cycle Concrete Vibrators
