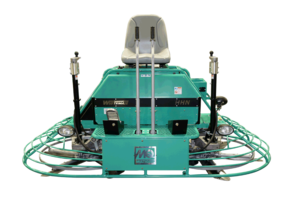

Whiteman HHNG5 Mechanical-Drive Ride-On Trowels

Drive System

• Powerful 35 HP Vanguard air cooled V-twin engine meets EPA Phase 3 standards
• Continuously variable transmission(CVT) provides superior performance by continually adjusting the drive ratio to obtain optimum torque and speed during all phases of finishing from low speed high torque to high speed burnishing
• Automotive constant velocity joints ensures smooth and consistent
  power is being transferred to the gearboxes
• Helical gearboxes are the industry’s most efficient, coolest
  running trouble free design. These gearboxes are also backed with a three year warranty
• Spider assemblies feature long lasting wear plates and spider hubs and can be economically rebuilt. Standard model comes with 5 blade configuration

Design

• TwinPitch control enables the operator to simultaneously
  control the pitch of both rotors with minimal effort, yet still
  allows for individual pitch control
• Lifting points are built in to the machine for balanced lifting. (Lifting straps included)

Operator Controls

• LED lighting provides state of the art illumination for night time or indoor work
• Steering assist prevents operator fatigue and makes
  controlling the machine remarkably easy even with float pans.
