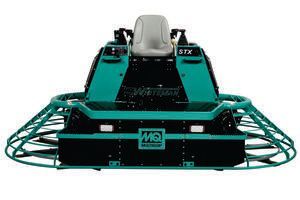

Whiteman STX6H Hydrostatic-Drive Ride-On Trowels

Drive system

• 70HP Hatz 4H50TIC turbo diesel engine complies with US EPA Tier 4 Final emission requirements
• Engine comes complete with a DOC exhaust system standard that meets all EPA requirements. Any modifications to this system will void engine warranty
• Patented Engine Power Management senses engine load and adjusts hydraulic pump stroke to allow the engine to operate at peak performance
• Six blade spider assemblies assure the flattest floors possible with 33% more blade contact

Operator controls

• Cruise control reduces operator fatigue during low speed operations
• 6 LED lights provide state of the art illumination for night time or indoor work
• Retardant spray system actuated by the controls located on the steering handles, provides uniform coverage of the slab surface
• Proportional hydraulic steering has been enhanced and offers improved responsiveness with minimal operator effort
• SmartPitch™ control synchronizes blade pitch for both rotors with single button
• Multifunction display provides the operator with easy-to-read data including engine speed, fuel levels and alerts
• Rotor Jog facilitates lifting; allows operator to jog the rotors to prevent surface marring while standing in front of the machine
• 12 Volt outlet and drink holder for charging your electronic devices and operator convenience

Design

• Clamshell deign simplifies maintenance and permits convenient access to all service items
• Automatic Shut-down stops the rotors from turning if the operator stands up while the engine is running
• Increased chassis rigidity and stability achieved by lower center of gravity, reduces body roll and improves steering feedback and operator control
